Vortex™

Coupling Grease

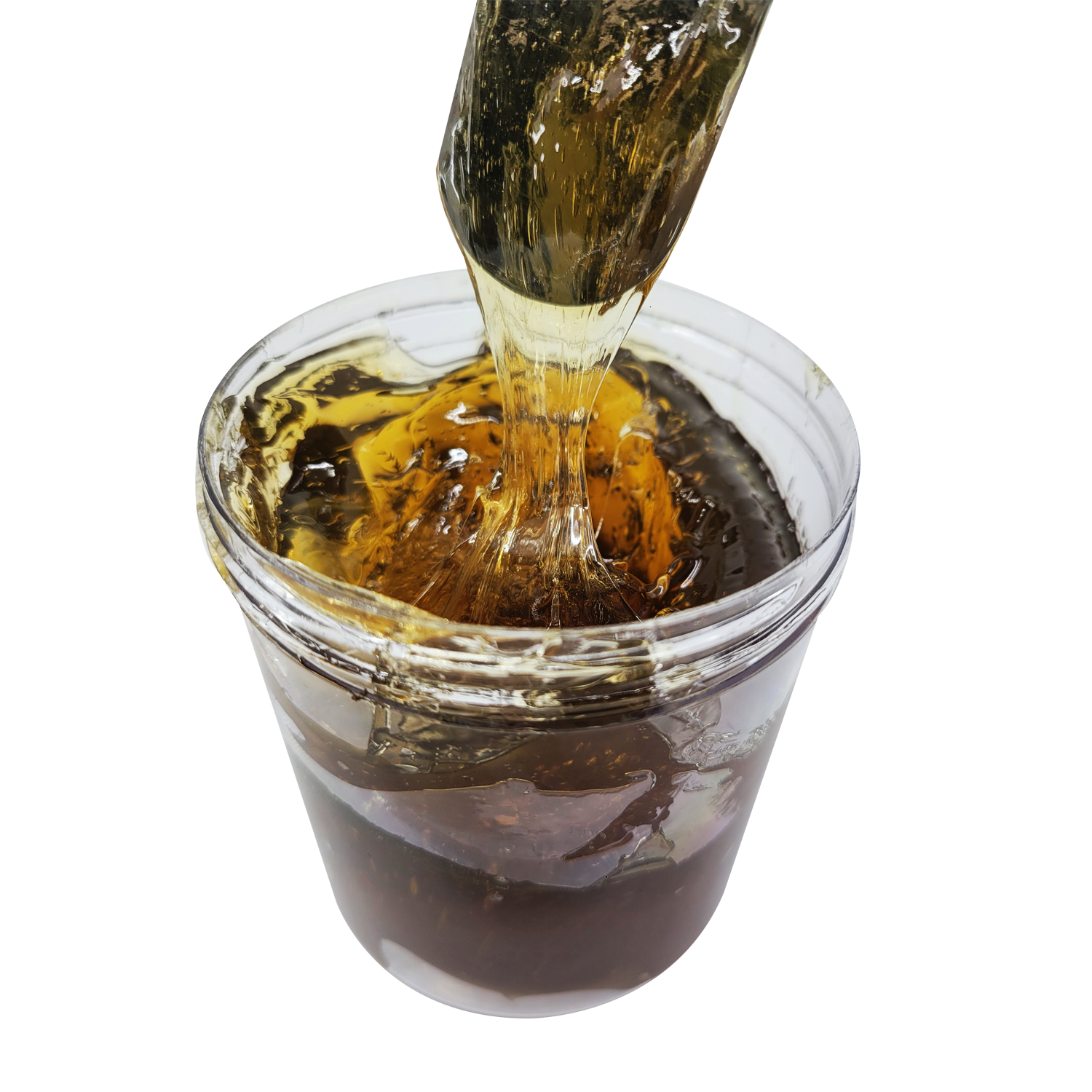

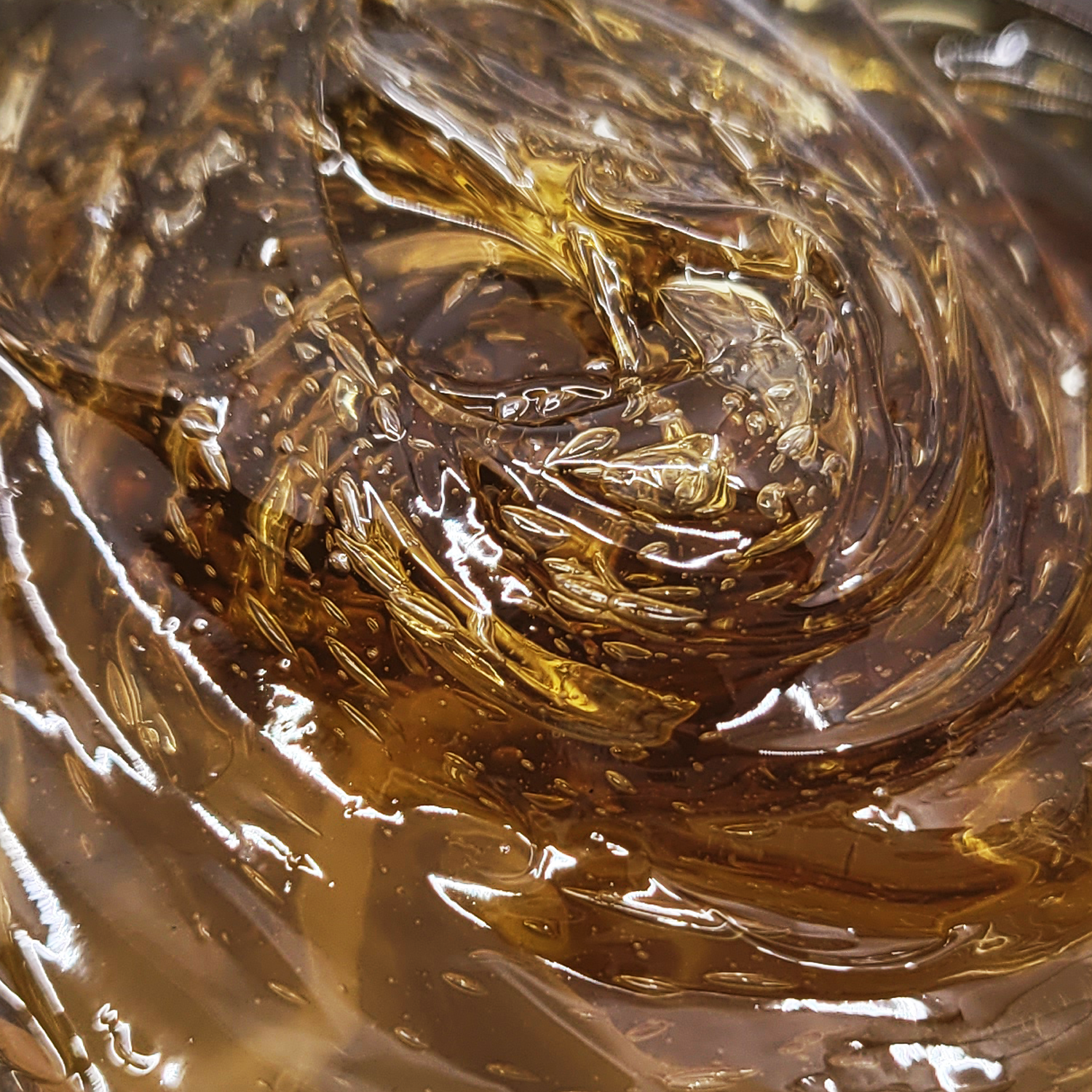

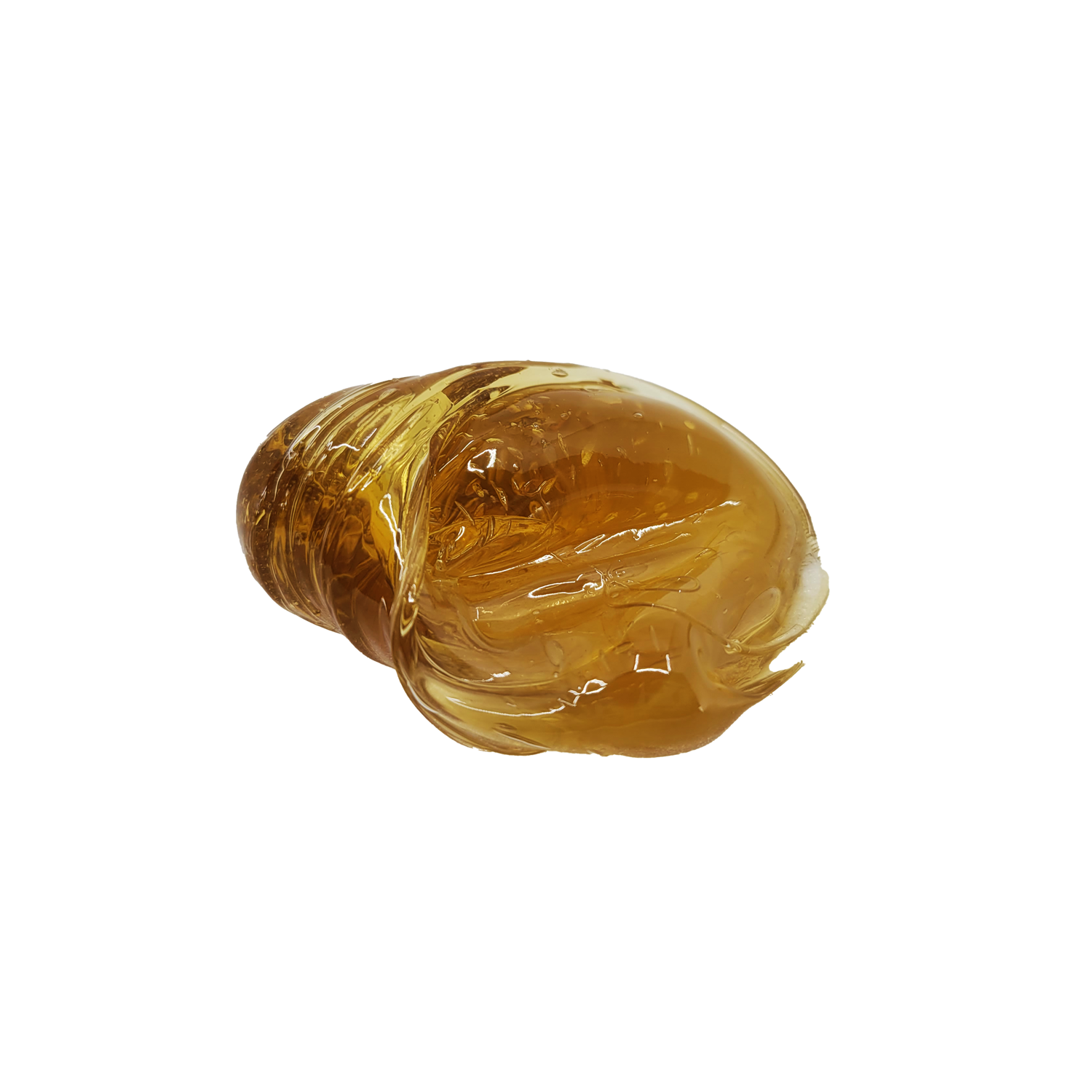

Whitmore’s Vortex™ Coupling Grease is a tacky, lithium-polymer thickened grease specifically formulated for long term lubrication of greased mechanical couplings including gear tooth, chain type, and steel grid designs. Vortex may be used in couplings of any size and at high speed.

Results of the high-speed centrifugal test (ASTM D-4425) have shown that the dual thickener used in Vortex™ permits only miniscule oil separation even at 15,000 rpm. Oil separation is the major cause of lubricant failure in couplings.

Robust anti-wear and extreme pressure additives in combination with a high viscosity fluid assure protection from abrasive wear that is generated by low amplitude, high frequency rubbing motion common to industrial couplings.

Vortex can be used to lubricate slow moving, heavily loaded bushings, especially where water contamination exists. It is also recommended for pressurized wire rope lubrication devices. Supplemental heat may be required in order to facilitate pumping at temperatures below freezing. Do not use in rolling element bearings (ball bearings, roller bearings etc) without first consulting Whitmore’s Technical Services Dept. at 972-771-1000, ext. 274.

APPLICATIONS: Use Vortex in all sizes of gear, chain and grid type couplings, where grease is the recommended lubricant. Typical manufacturers include Fast’s, Koppers, Lovejoy, Falk, TB Wood’s, and Browning. Vortex™ can be used at all speeds found in industrial applications and also in the presence of water and steam. Also suitable for slow-moving bushings and greased wire ropes. Vortex meets the requirements of AGMA CG-1, CG-2, and CG-3 for coupling grease.

Benefits

• REDUCED DOWNTIME - no unscheduled downtime due to lubrication failures.
• HOUSEKEEPING - no oil leakage, even where seals are imperfect.

• LONG LIFE - extended grease life gives an extra measure of security and reduces maintenance labor.
• ALL COUPLINGS - one product can be used for all sizes and speeds, including areas of water contamination.
