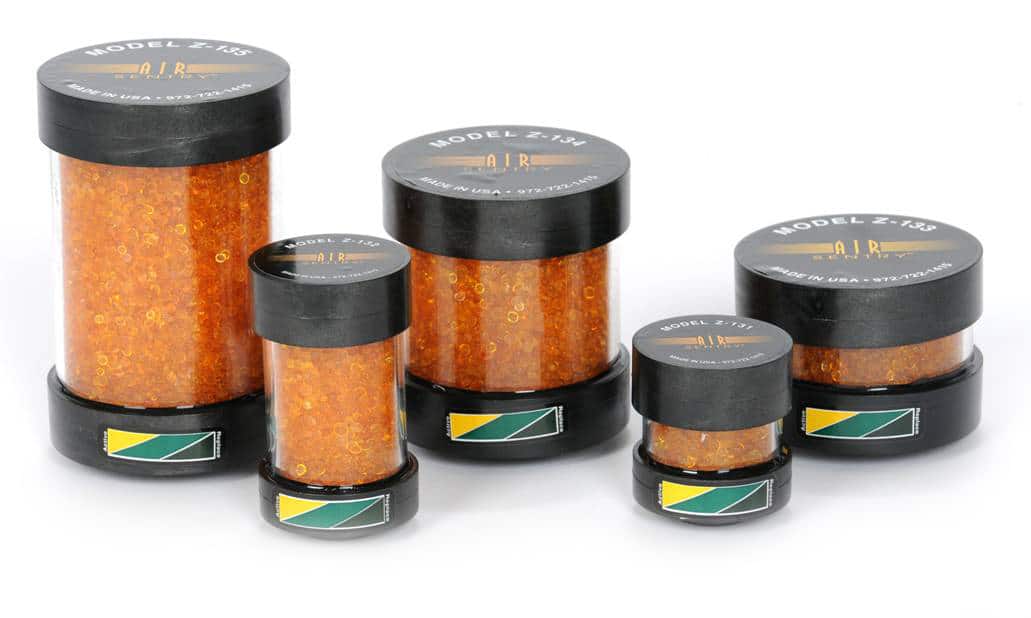

Z-Series breathers are designed for applications where space is limited or air flow requirements are lower than 5 cfm. The Z-Series is typically used on gearboxes and low fluid volume applications where mounting space is limited or where a larger breather will not fit without remote mounting.
All Z-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.
Operating Temperature: -20°F (-29°C) to +200F (+93°C)
Limited Space Applications - Gearboxes • Drums • Totes • Small Oil Containers
- Product Z-Series
- Base material 100% Silica Gel
|Model||Height||Diameter||Mounting Connection||Silica Gel||Maximum Adsorption Capacity||Maximum Air Flow||Maximum Reservoir Fluid Flow||Type of Medium|
|Z-131||2 in 5.1 cm||2 in 5.1 cm||1/2" FNPT||0.08 lbs 0.04 kg||0.49 fl oz 14 mL||5 cfm||37 gpm||100% Silica Gel|
|Z-132||3.25 in 8.3 cm||2 in 5.1 cm||1/2" FNPT||0.1 lbs 0.05 kg||0.92 fl oz 27 mL||5 cfm||37 gpm||100% Silica Gel|
|Z-133||2 in 5.1 cm||3.25 in 8.3 cm||1/2" FNPT||0.3 lbs 0.1 kg||1.84 fl oz 54 mL||5 cfm||37 gpm||100% Silica Gel|
|Z-134||3.25 in 8.3 cm||3.25 in 8.3 cm||1/2" FNPT||0.5 lbs 0.2 kg||3.06 fl oz 90 mL||5 cfm||37 gpm||100% Silica Gel|
|Z-135||5.5 in 14.0 cm||3.25 in 8.3 cm||1/2" FNPT||0.8 lbs 0.4 kg||4.91 fl oz 145 mL||5 cfm||37 gpm||100% Silica Gel|
* Note: Models with other media are available.
