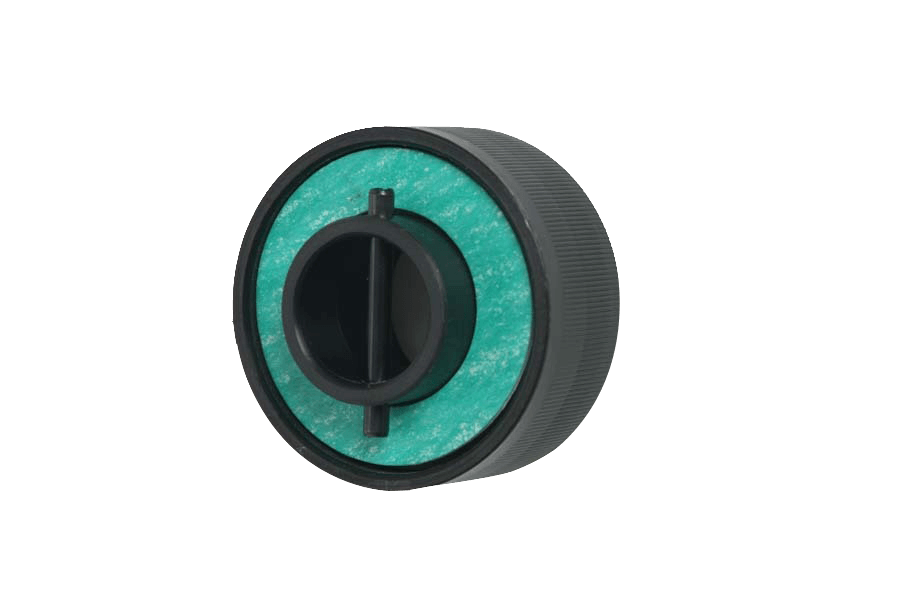

Slip Fit Bayonet Adapters
Desiccant Breathers

Slip Fit Bayonet Adapters replace a standard breather cap on hydraulic reservoirs. Simply remove the breather cap, place the bayonet adapter on the breather flange and rotate one-quarter turn. No tank modification is required.

Specifications

  • Base Material
    • High Density EDPM, Gasket, Metal Dowel
  • Connection to Breather
    • Slip Fit - 1 inch
  • Connection to Reservoir
    • Bayonet push & turn connection
  • M1 (inches)
    • 2 3/4
  • L (inches)
    • 1 5/8

Resources

Part # Material Connection to Breather Connection to Reservoir M1 (inches) L (inches)
A-104 High Density EDPM,
Gasket, Metal Dowel
Slip Fit - 1 inch Bayonet push &
turn connection
2 3/4 1 5/8
Fits all breathers with slip fit connections
