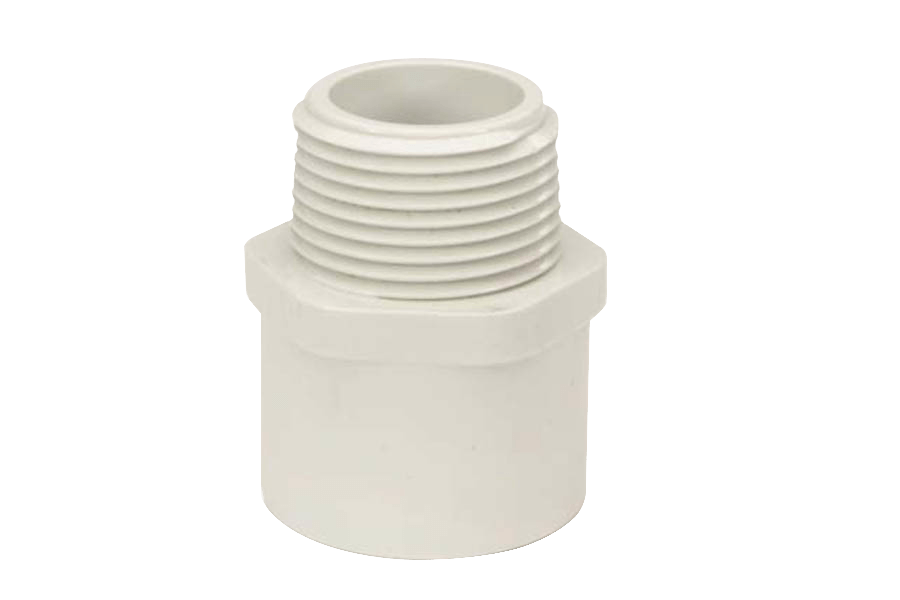

Slip Fit Male Threaded Adapters
Desiccant Breathers

Slip Fit Male Threaded Adapters are suitable for use with Air Sentry breathers that have a 1" slip fit connection and are intended for reservoirs or gearboxes with a wall thickness sufficient for a tapped hole. Fits all breathers with slip fit connections.

Specifications

  • Base Material
    • Schedule 40 PVC
  • Connection to Breather
    • Slip Fit - 1 inch
  • Connection to Reservoir
    • 1/2 inch male NPT, 3/4 inch male NPT, 1 inch male NPT, 1 inch male BSP
  • M1 (inches)
    • 1 5/8, 1 9/16, 1 21/32
  • N (inches)
    • 5/8, 3/16, 7/32
  • L (inches)
    • 2, 2 1/8, 2 7/16

Resources

Part # Material Connection to Breather Connection to Reservoir M1 (inches) N (inches) L (inches)
A-102 Schedule 40 PVC Slip Fit - 1 inch 1 inch male NPT 1 5/8 7/32 2
A-103 Schedule 40 PVC Slip Fit - 1 inch ¾ inch male NPT 1 21/32 3/16 2
A-409 Schedule 40 PVC Slip Fit - 1 inch ½ inch male NPT 1 9/16 5/8 2 7/16
A-501 Schedule 40 PVC Slip Fit - 1 inch 1 inch male BSP 1 5/8 7/32 2 1/8
Fits all breathers with slip fit connections
