Slip Fit Flange Adapters
Desiccant Breathers

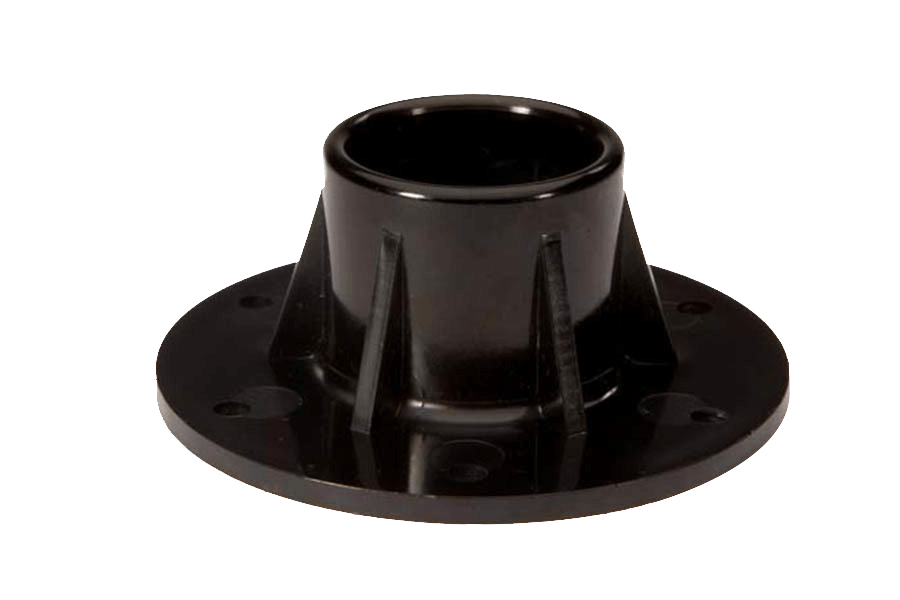

Slip Fit Flange Adapters are used with breathers having a 1" slip-fit connection. These adapters are used with reservoirs where the tank wall is not thick enough to allow for tapping threads. With the Model A-101 adapter, mounting holes can be drilled in the high impact ABS molded flange to mate with any required hole pattern. The Model A-114 flange adapter has a standard ANSI 6-hole pattern pre-drilled for mounting. Fits all breathers with slip fit connections.

Specifications

  • Base Material
    • High Impact ABS
  • Connection to Breather
    • Slip Fit - 1 inch
  • Connection to Reservoir
    • Costomer drilled holes, Six 3/8 inch clearance holes spaced 60 degrees apart on 2 7/8 inch diameter center

Resources

Part # Material Connection to Breather Connection to Reservoir
A-101 High Impact ABS Slip Fit - 1 inch Customer drilled holes
A-114 High Impact ABS Slip Fit - 1 inch Six 3/8 inch clearance holes spaced 60 degrees
apart on 2 7/8 inch diameter center
Fits all breathers with slip fit connections
