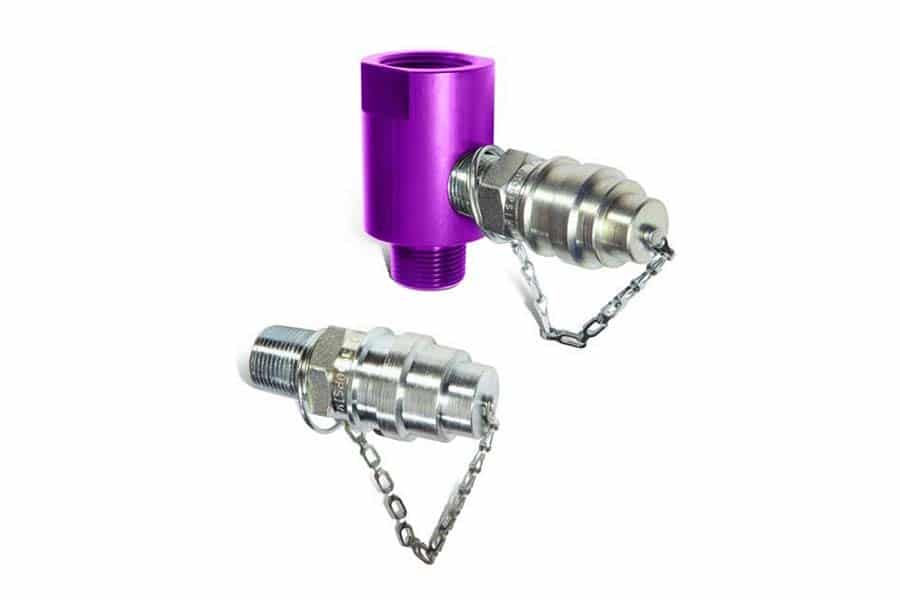

Gearbox Adapter Kit
Lubrication Management, Desiccant Breathers

Gearbox Adapter Kits allow breathers to be installed on any gearbox. Oil can be pumped in or out without opening the gearbox to atmosphere. Offline filtration, oil changes and sampling can be handled through the adapter. They are a faster, simpler and cleaner way to handle gear oils and reduce ingression.

Gearbox Adapter Kits are available in a dark gray color and configured with no Quick Connects, Iso-b Quick Connects or Colorized Quick Connects* available in 10 familiar OilSafe colors or silver.

*Colorized Quick Connects have been inspected to ensure anodized colors are within OilSafe color spectrum scope. Color and shade can vary on anodized components, this will not impact performance of product.

Specifications

  • Height
    • (1”, 3/4", 1/2" Adapter) - 3"
  • Diameter
    • (1”, 3/4" Adapter) - 1.75" (1/2" Adapter) - 1.25"
  • Mounting Connection
    • (1” Adapter) - 1" MNPT (3/4" Adapter) - 3/4" MNPT (1/2" Adapter) - 1/2"MNPT

Resources

Code #962
