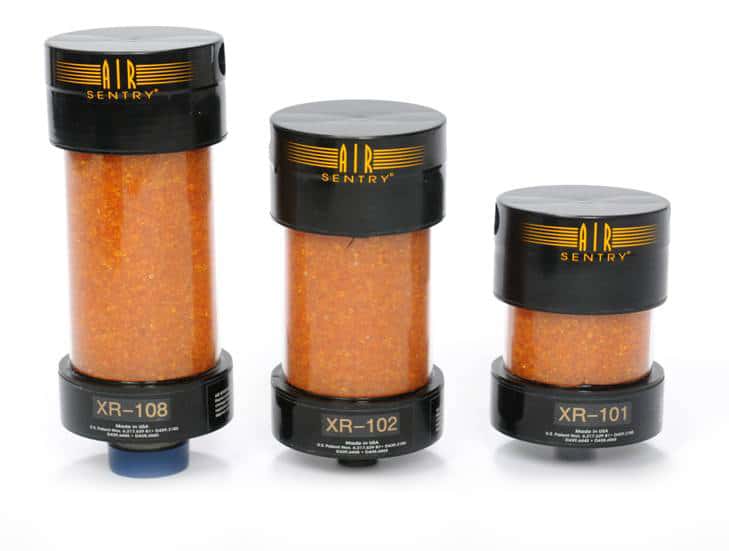

XR-Series Desiccant Breathers

XR-Series breathers were originally engineered for the wind power industry but are designed to perform in any extreme environment where protection from dust, moisture and vibration is critical. These breathers include a metal reinforced base, available with male NPT threads to adapt to your equipment. The base is designed to handle the rigors of high-vibration applications. The top cap uses two check valves to prevent outside moisture and solid contaminants from entering the breather until there is a need for airflow. The modular design allows for economical replacement of the desiccant cartridge.

Applications - Windmills and Wind Power • Mining Equipment • Mobile Equipment

specifications

bucket
  • Product XR-Series Desiccant Breathers
  • Base material 100% Silica Gel
Model Check Valve PSI In/Out Height Diameter Mounting Connection Silica Gel Maximum Adsorption Capacity Maximum Air Flow Maximum Reservoir Fluid Flow Type of Medium Cartridge
XR-101 0.1 2.0 8.5 in 21.6 cm 5.2 in 13.2 cm 1" MNPT 1.4 lbs 0.6 kg 8.6 fl oz 254 mL 25 cfm 187 gpm 100% Silica Gel A-351
XR-102 0.1 2.0 11.5 in 29.2 cm 5.2 in 13.2 cm 1" MNPT 2.7 lbs 1.2 kg 16.56 fl oz 489 mL 25 cfm 187 gpm 100% Silica Gel A-352
XR-108 0.1 2.0 14 in 35.6 cm 5.2 in 13.2 cm 2" MNPT 3.5 lbs 1.6 kg 21.47 fl oz 634 mL 25 cfm 187 gpm 100% Silica Gel A-358
XR-121 0.1 2.0 8.5 in 21.6 cm 5.2 in 13.2 cm 2" MNPT 1.4 lbs 0.6 kg 8.6 fl oz 254 mL 25 cfm 187 gpm 100% Silica Gel A-351
XR-122 0.1 2.0 11.5 in 29.2 cm 5.2 in 13.2 cm 2" MNPT 2.7 lbs 1.2 kg 16.56 fl oz 489 mL 25 cfm 187 gpm 100% Silica Gel A-352
XR-501 0.1 0.1 8.5 in 21.6 cm 5.2 in 13.2 cm 1" MNPT 1.4 lbs 0.6 kg 8.6 fl oz 254 mL 25 cfm 187 gpm 100% Silica Gel A-351
XR-502 0.1 0.1 11.5 in 29.2 cm 5.2 in 13.2 cm 1" MNPT 2.7 lbs 1.2 kg 16.56 fl oz 489 mL 25 cfm 187 gpm 100% Silica Gel A-352
XR-508 0.1 0.1 14 in 35.6 cm 5.2 in 13.2 cm 2" MNPT 3.5 lbs 1.6 kg 21.47 fl oz 634 mL 25 cfm 187 gpm 100% Silica Gel A-358
XR-521 0.1 0.1 8.5 in 21.6 cm 5.2 in 13.2 cm 2" MNPT 1.4 lbs 0.6 kg 8.6 fl oz 254 mL 25 cfm 187 gpm 100% Silica Gel A-351
XR-522 0.1 0.1 11.5 in 29.2 cm 5.2 in 13.2 cm 2" MNPT 2.7 lbs 1.2 kg 16.56 fl oz 489 mL 25 cfm 187 gpm 100% Silica Gel A-352
