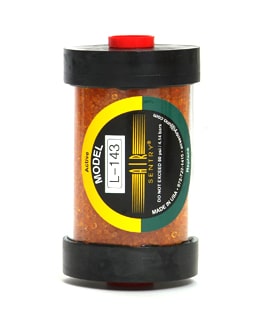

L-Series Desiccant Breathers
L-Series Breathers are available with 100% silica gel or activated carbon, or a combination of both, as necessary. These breathers include an in-line filter/dryers that remove water vapor and solid contaminants from air exhaust lines, low pressure compressed air lines, vacuum lines, and other in-line airflow applications where clean, dry air is required. Air enters the filter/dryer in one end and is clean and dry when leaving the other end. Water vapor and solid particles down to 2 micron are removed. L-Series is rated up to 60 psi and mounted on the regulated side of the air line.
Applications - Air Exhaust Lines • Vacuum Lines • Low Pressure Compressed Air Lines • Marine Vehicles
- Product L-Series Desiccant Breathers
- Base material 100% Silica Gel
|Model||Height||Diameter||Both Ends Connection||Silica Gel||Maximum Adsorptions Capacity||Maximum Air Flow||Maximum Reservoir Fluid Flow||Type of Medium|
|L-141||5.5 in 14.0 mm||2 in 5.1 mm||1/2" FNPT||0.2 lbs 0.1 kg||1.35 fl oz 39 mL||4 cfm||30 gpm||100% Silica Gel|
|L-142||8.5 in 21.6 mm||2 in 5.1 mm||1/2" FNPT||0.3 lbs 0.1 kg||2.32 fl oz 68 mL||6 cfm||45 gpm||100% Silica Gel|
|L-143||5.5 in 14.0 mm||3.25 in 8.3 mm||1/2" FNPT||0.8 lbs 0.4 kg||4.91 fl oz 145 mL||10 cfm||75 gpm||100% Silica Gel|
|L-144||8.5 in 21.6 mm||3.25 in 8.3 mm||1/2" FNPT||1.2 lbs 0.5 kg||7.87 fl oz 232 mL||10 cfm||75 gpm||100% Silica Gel|
* Note: Models with other media are available.
